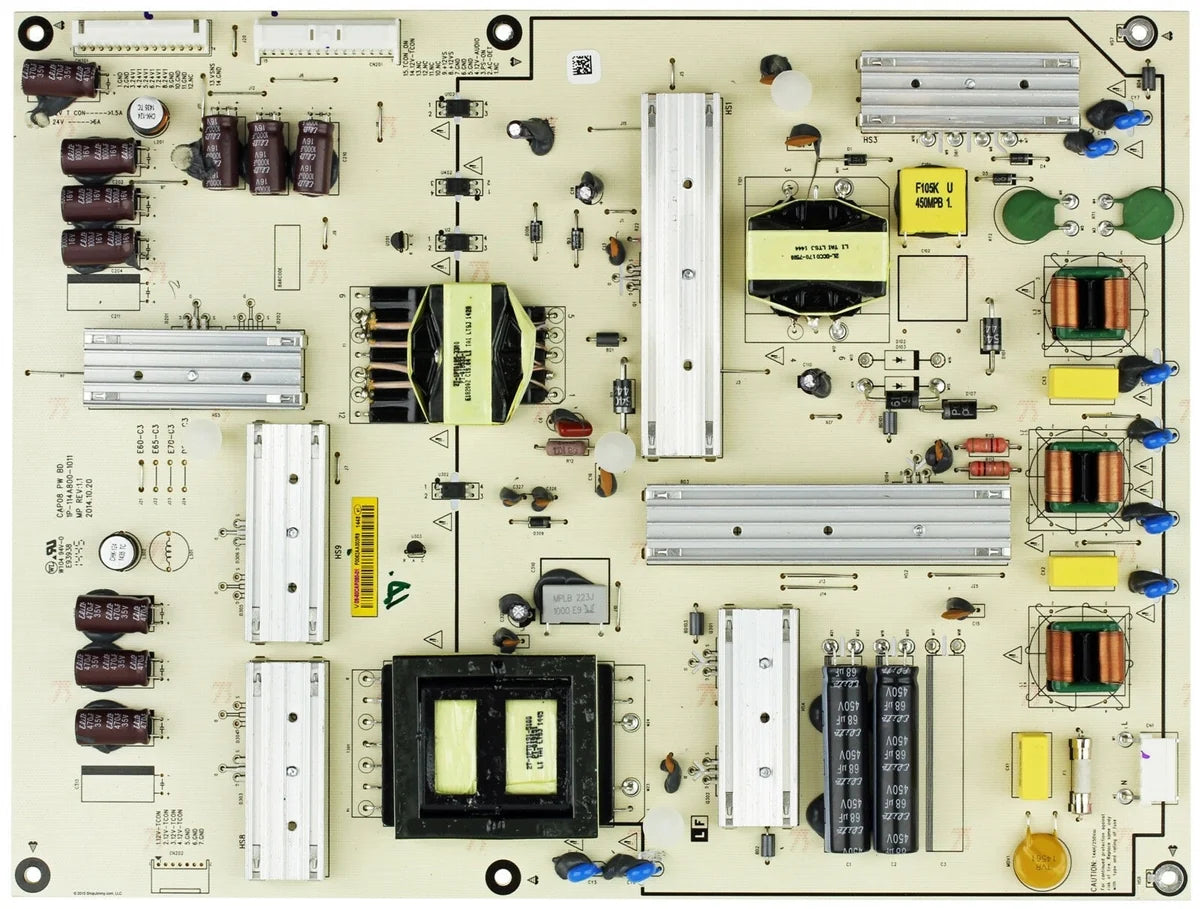

09-60CAP080-01 Vizio Power Supply Board for E60-C3 / E70-C3

Vizio 09-60CAP080-01 (0960CAP08001) power supply board, board number 1P114A8001011, for E60-C3 and E70-C3 TVs. This replacement is intended for diagnosed power-supply faults, including LED backlight power problems. Match the label part number and board identifier before ordering.

Specifications & Board Identifiers

• Brand: Vizio
• Part Number: 09-60CAP080-01 (0960CAP08001)
• Board Number: 1P114A8001011
• Product Type: Power Supply Board
• Compatible TV Models: E60-C3 | E70-C3

Common TV Symptoms Fixed

• TV fails to power on when the power supply has been diagnosed as faulty.
• Dark screen or absent LED backlighting caused by a backlight power-supply fault.

The original listing identifies this part as commonly associated with LED backlight failure. Failed LED strips and other components can cause similar symptoms; confirm the cause before replacing the power supply.

Fitment & Ordering Guidelines

Verify the white-sticker/label part number 09-60CAP080-01, PCB/board number 1P114A8001011, and complete TV model suffix before ordering. Check your TV's version label as well; no specific version code is provided in this listing. Model number or visual similarity alone does not establish fitment.

Disconnect the TV from power before service. Power-supply capacitors can retain hazardous voltage after unplugging; professional installation is recommended. Use ESD precautions and handle the board by its edges.
