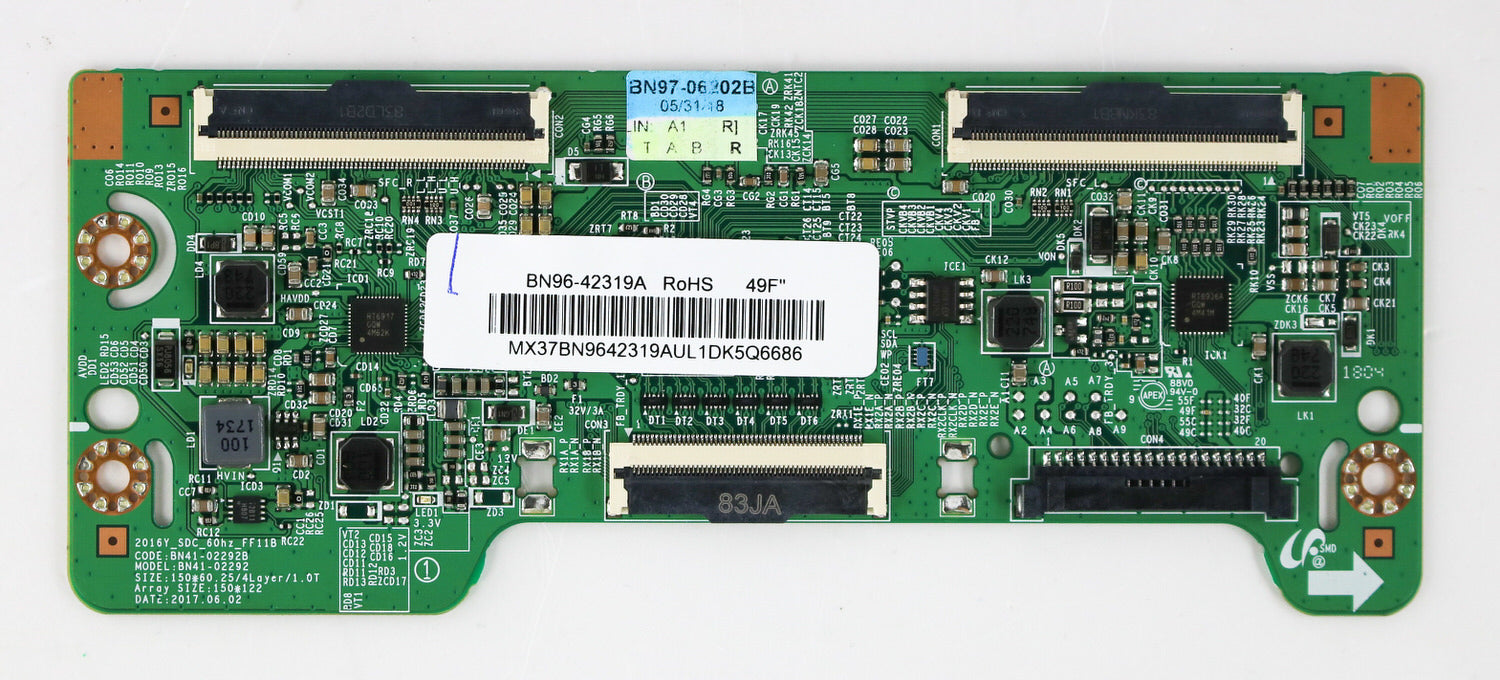

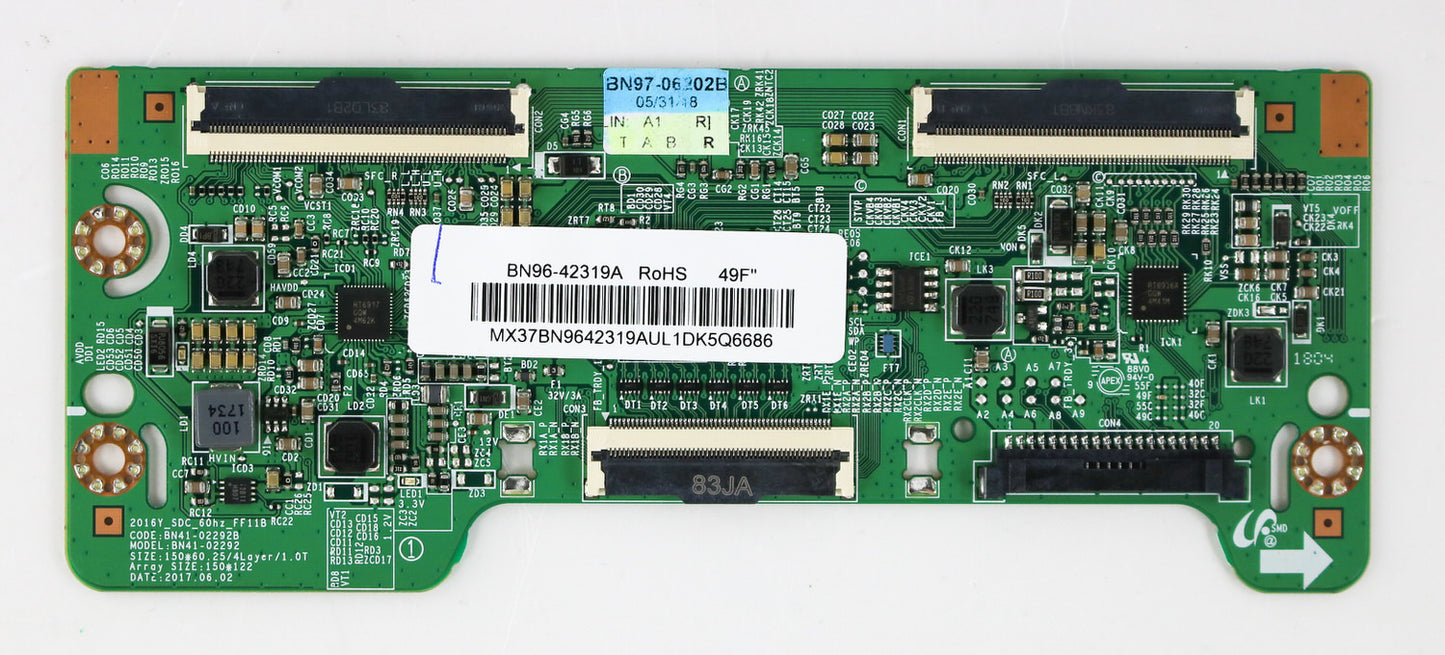

BN96-42319A Samsung T-Con Board for UN49J5200AGXUG / UN49M5300AFXZA FA01

BN96-42319A Samsung T-Con board (BN9642319A) with board identifiers BN9706202B | BN4102292A, listed for UN49J5200AGXUG and the exact compatible models below. The source specifies FA01 for LH49DCJPLGAGO and UN49M5300AFXZA and lists BN9502673D as a substitute. A faulty T-Con board may cause no picture, display distortion, or abnormal colors when the fault is confirmed in this board.

Specifications & Board Identifiers

• Part number: BN96-42319A (BN9642319A)
• Brand: Samsung
• Product type: T-Con Board
• Board identifiers: BN9706202B | BN4102292A
• Listed substitute: BN9502673D

Compatible models and source-listed versions:

• UN49J5200AGXUG
• UN49J5000AFXZC
• UA49M5000ASXEG
• UA49M5000ARXXA
• UA49M5000ARXTW
• UA49M5000ARLXL
• UA49M5000AKXZN
• UA49M5000AKXXV
• UA49M5000AKXXT
• UA49M5000AKXLY
• UA49M5000AKXKE
• UA49M5000AKXGH
• UA49M5000AKPXD
• UA49M5000AGXXP
• UA49J5200ASXMV
• UN49J5200AFXZP
• UN49J5200AFXZX
• UN49J5200AGXPR
• UA49J5250AKXXV
• UA49J5250AKXXS
• LH49DCJPLGCXS
• UA49M5050AKPXD
• UA49M5000ARXUM
• LH49DBJPLGCXL
• UN49M5300AFXZC
• UN49M5000AGXZS
• UN49J5200AKXZL
• UN49J5200AHXPA
• UN49J5200AGXZS
• UN49J5200AGXZD
• UN49J5200AGXPE
• UA49J5200ASXEG
• UA49J5200ARXXP
• LH49DCJPLGAGO: FA01
• LH49DCJPDGCXL
• LH49DBJPLGCXF
• LH49DBJPLGCRU
• LH49DBJPLGCEN
• LH49DBJPLGAGO
• LH49DBJPDGCXL
• HG49NF693GFXZA
• HG49NE478HFXZA
• HG49NE477HFXZA
• HG49NE470HFXZA
• UN49M530DAFXZA
• HG49NF690GFXZA
• UN49M5300AFXZA: FA01
• LH49DCJPLGCEN
• LH49DCJPLGCRU
• UA49J5200ARXXA
• UA49J5200ARXUM
• UA49J5200ARXTW
• UA49J5200AKXZN
• UA49J5200AKXXV
• UA49J5200AKXXT
• UA49J5200AKXXS
• UA49J5200AKXXM
• UA49J5200AKXWT
• UA49J5200AKXKE
• UA49J5200AKXGH
• UA49J5200AKPXD
• LH49DCJPLGVZD
• LH49DCJPLGCXY
• UN49J5000AFXZA

Sticker/version-match warning: FA01 is specified for LH49DCJPLGAGO and UN49M5300AFXZA only. Other entries have no specified version; do not assume compatibility with every version. Match your full model suffix, version, and board label before ordering.

Common TV Symptoms Fixed

When diagnosis confirms a faulty T-Con board, replacement may address:

• No picture despite the TV powering on.
• Lines, distorted images, or abnormal colors.
• Partial-screen or unstable picture problems.

Panel, ribbon-cable, and other board faults can produce similar symptoms. These symptoms alone do not confirm a T-Con failure or guarantee a fix.

Fitment & Ordering Guidelines

Verify BN96-42319A on the original board's white sticker and compare PCB/board identifiers BN9706202B and BN4102292A. Match the TV's complete model suffix, version, connectors, and ribbon layout. Keep the FA01 restriction attached to the two models listed with that code. Do not order by screen size or model family alone.

Listed substitute BN9502673D must also be checked against your exact TV and original board identifiers before purchase.

Unplug the TV before installation and follow ESD precautions. Handle the board by its edges and release ribbon connector locks carefully; do not pull or force the cables. Use a qualified technician if you are unfamiliar with safe TV repair.
