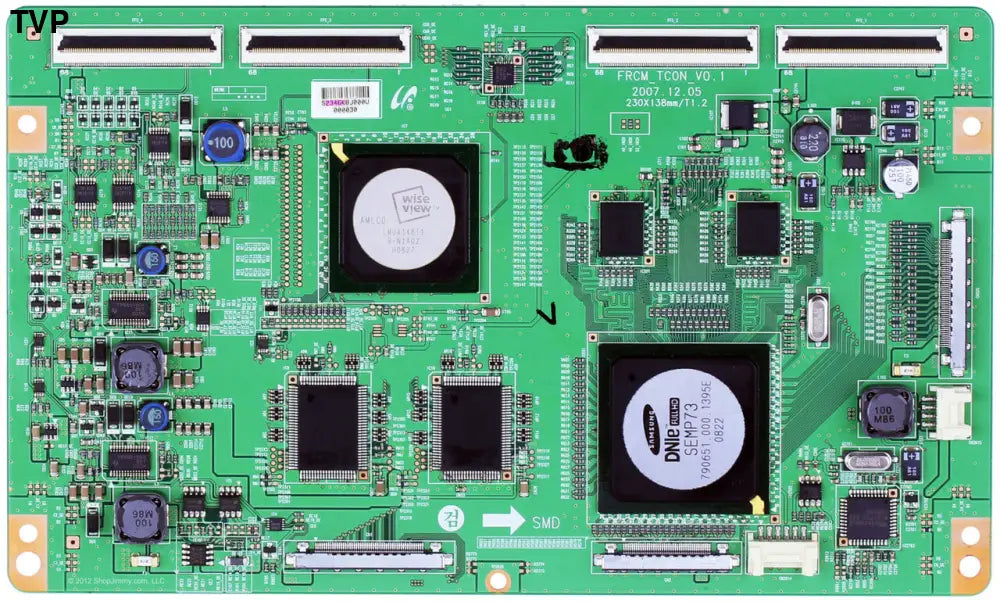

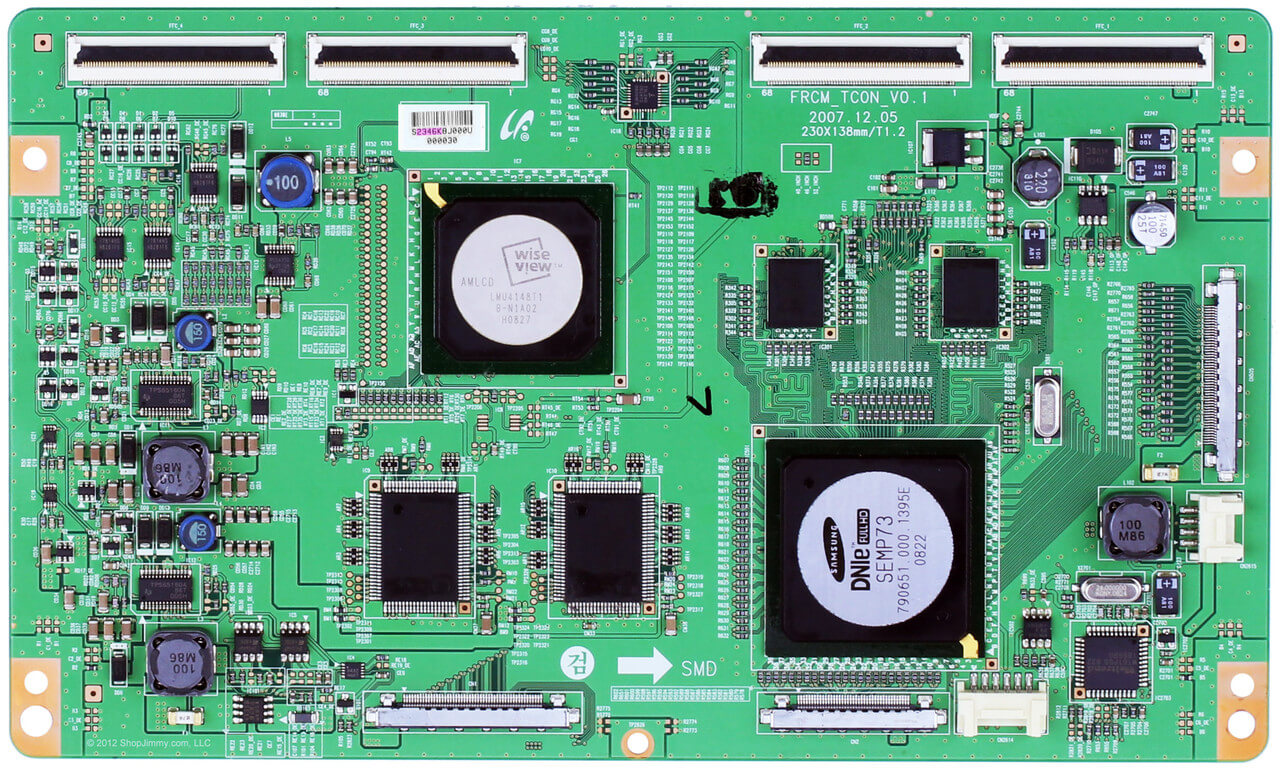

BN81-02452A Samsung LN52A850S1FXZA T-Con Board

Samsung BN81-02452A (BN8102452A) T-Con board for the LN52A850S1FXZA LCD TV, with board identifier FRCM_TCON_V0.1. This timing-control replacement board is intended for display faults diagnosed as originating in the T-Con board. Match the original part and board identifiers before ordering.

Specifications & Board Identifiers

• Part Number: BN81-02452A (BN8102452A)
• Brand: Samsung
• Product Type: LCD TV T-Con Board
• Board Number: FRCM_TCON_V0.1
• Compatible TV Model: LN52A850S1FXZA

Common TV Symptoms Fixed

A faulty T-Con board may cause the following display symptoms:

• Distorted or incorrectly rendered picture
• Lines, abnormal colors, or partial-screen display problems
• No picture while the TV otherwise operates

Panel, cable, and other board faults can produce similar symptoms. Replace this board only after diagnosis confirms the T-Con as the cause.

Fitment & Ordering Guidelines

• Verify the white-sticker part number BN81-02452A and PCB/board identifier FRCM_TCON_V0.1 against your original board.
• Match the full TV model suffix LN52A850S1FXZA and check panel and version labels. No specific supported TV version code is supplied in this listing; model number alone is not sufficient to confirm fitment.
• Unplug the TV before servicing. Use ESD protection, handle the board by its edges, and release ribbon-cable locks carefully. Do not force connectors.
• Internal power-supply components may retain charge. Have a qualified technician install the board if you are unsure.
• Contact us before ordering if the sticker, board, panel, or version identifiers differ.
