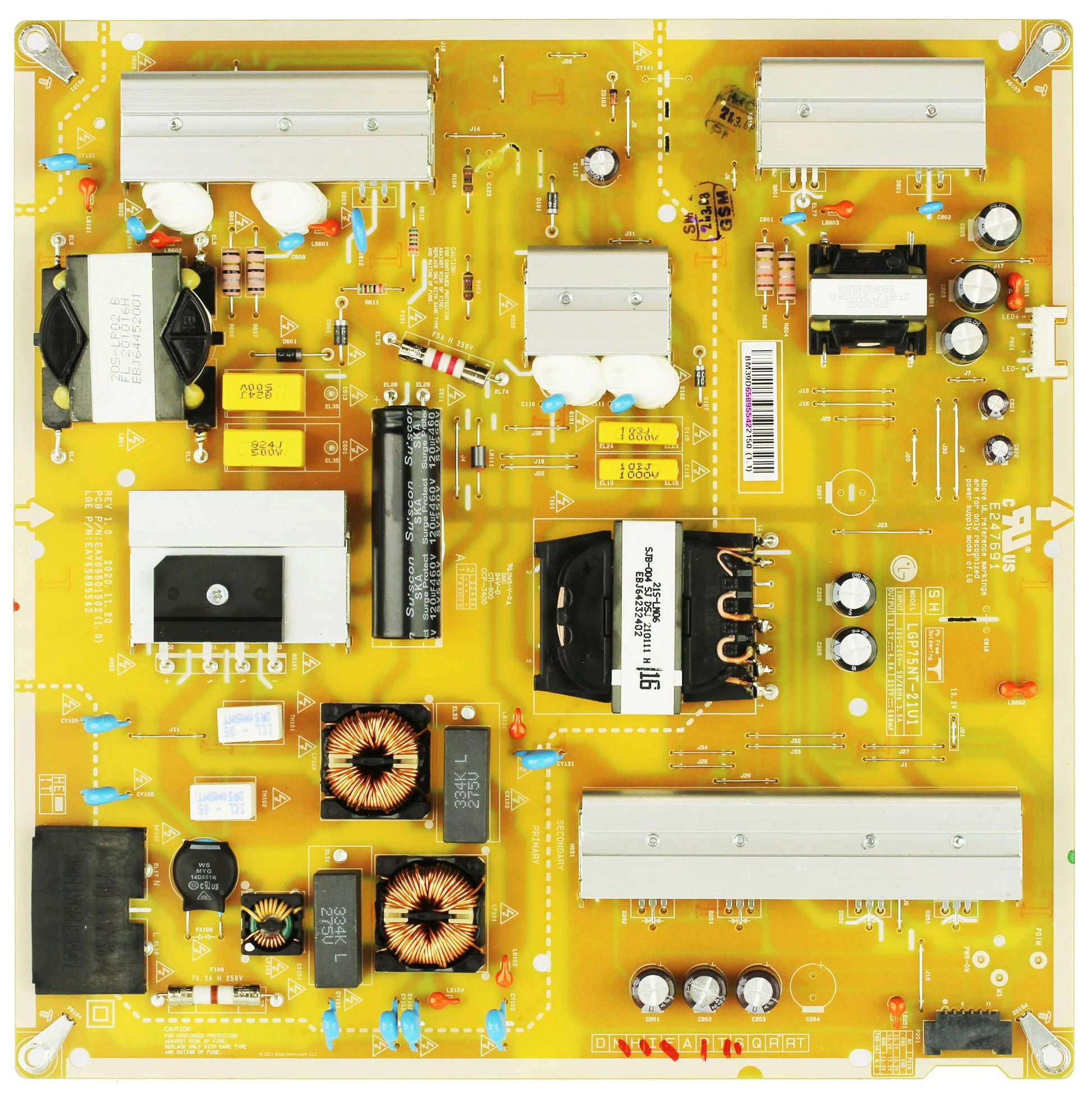

LG EAY65895546 Power Supply/LED Driver Board

The LG EAY65895546 (EAY65895546) is an OEM replacement LED TV Power Supply/LED Driver Board compatible with select LG 75" LED televisions. This combined board regulates power delivery and controls LED backlight brightness. A failing board can cause the TV not turning on, unexpected shutdowns, a dim or dark picture with audio, or a blinking standby light. Board numbers EAX69501502(1.0) and LGP75NT-21U1 are printed on the white barcode label — verify before ordering.

Specifications & Board Identifiers

• Part Number: EAY65895546 (EAY65895546)
• PBA / Board Numbers: EAX69501502(1.0) | LGP75NT-21U1
• Compatible Models: 75NANO75UPA, 75NANO75UQA, 75UP8070PUA, 75UQ7070ZUD, 75UQ7590PUB, 75UQ8000AUB, 75UQ9000PUD, 75UR340C9UD, 75UR640S9UD, 75UR760H9UD, 75UR770H0UD, 75UR770H9UD, 75UT8000AUA
• Supported Version: Check white sticker on your board — version codes must match (e.g. BUSFLKR, AUSCLKR, BUSCLKR)
• Product Type: LED TV Power Supply/LED Driver Board

Common TV Symptoms Fixed

• No Power / Won't Turn On: TV is completely dead or shows no response when power button is pressed
• Intermittent Shutdowns: TV powers on but shuts off unexpectedly during use
• Dim or Dark Picture with Audio: Sound works but screen is very dim or completely black
• Blinking Standby Light: Standby LED blinks repeatedly and TV will not boot

Fitment & Ordering Guidelines

• Verify board numbers EAX69501502(1.0) or LGP75NT-21U1 on your white barcode label match before ordering
• Confirm your TV model and version code (letters in red above) match your board's sticker
• Basic electronics experience is recommended for installation
• Substitute part available: EAY65895542
